Disassembly KWC Mini Uzi Hopup

After Open Upper Cover, remove outer barrel.

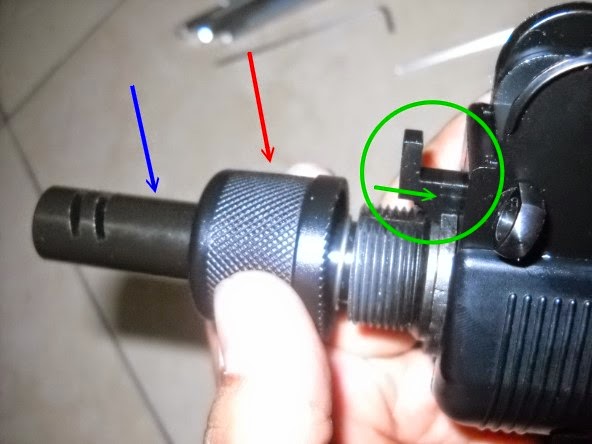

First, push inside this part (mark green), then turn counter-clock-wise this part (mark red arrow) until loose. Then you can pull outer barrel (mark blue) off.

Now, I take off lower frame by pull this pin (brown arrow), but before that you must push the other side of this pin.

Now you can see all this five screws, remove all of them, this two crews mark with red arrow hold hopup house to the frame.

 Now remove the rear sight, just watch the picture, you would know what to do.he.he.he.
First, remove screw mark with yellow arrow, then you can turn knob (red arrow) that adjust rear sight counter-clock-wise until it fall off.

Now I can remove inner frame

Next, remove o-ring, spring and hopup arm

Now turn the hopup then pull it away

To fully disassemble hopup, use small screw driver to lever inner lock

That's it, easy right...

next post i'll show you how to modifed aeg tight barrel to replace stock inner barrel of this gun
